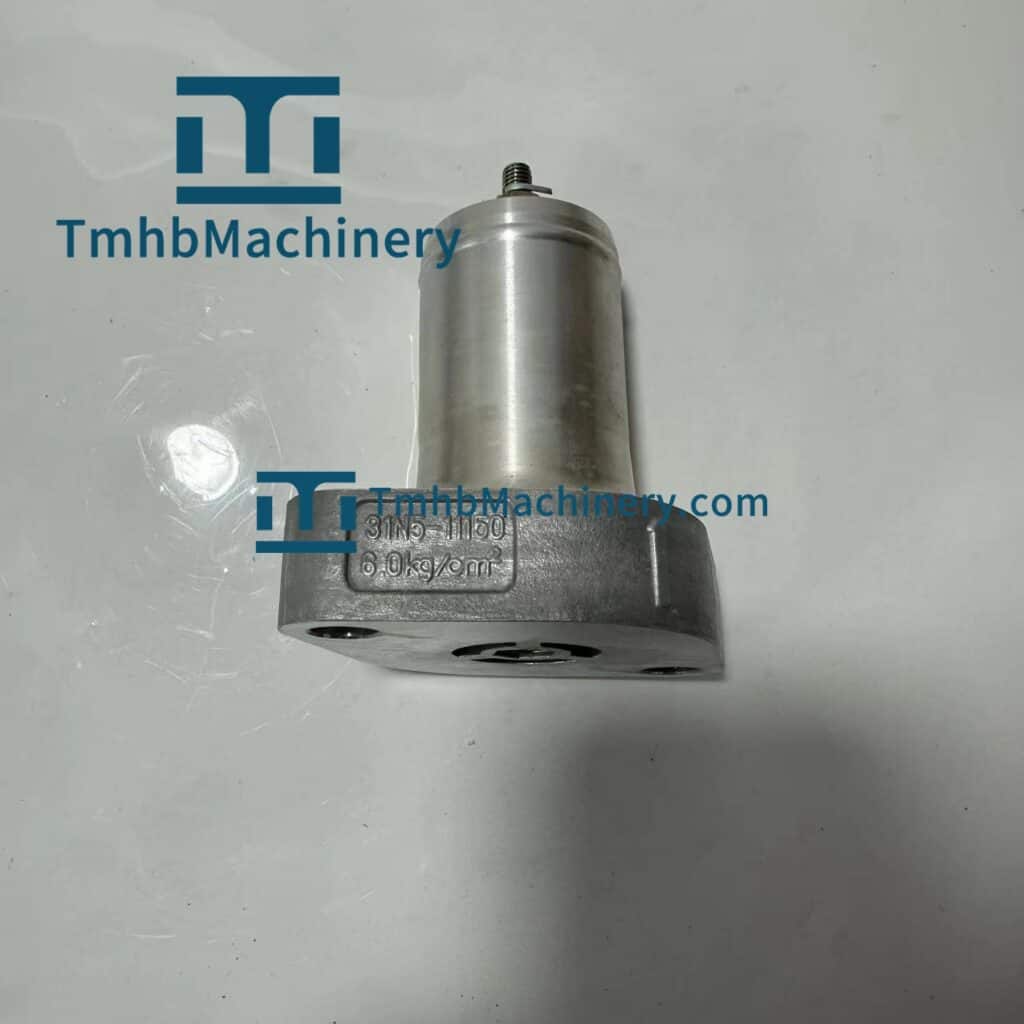

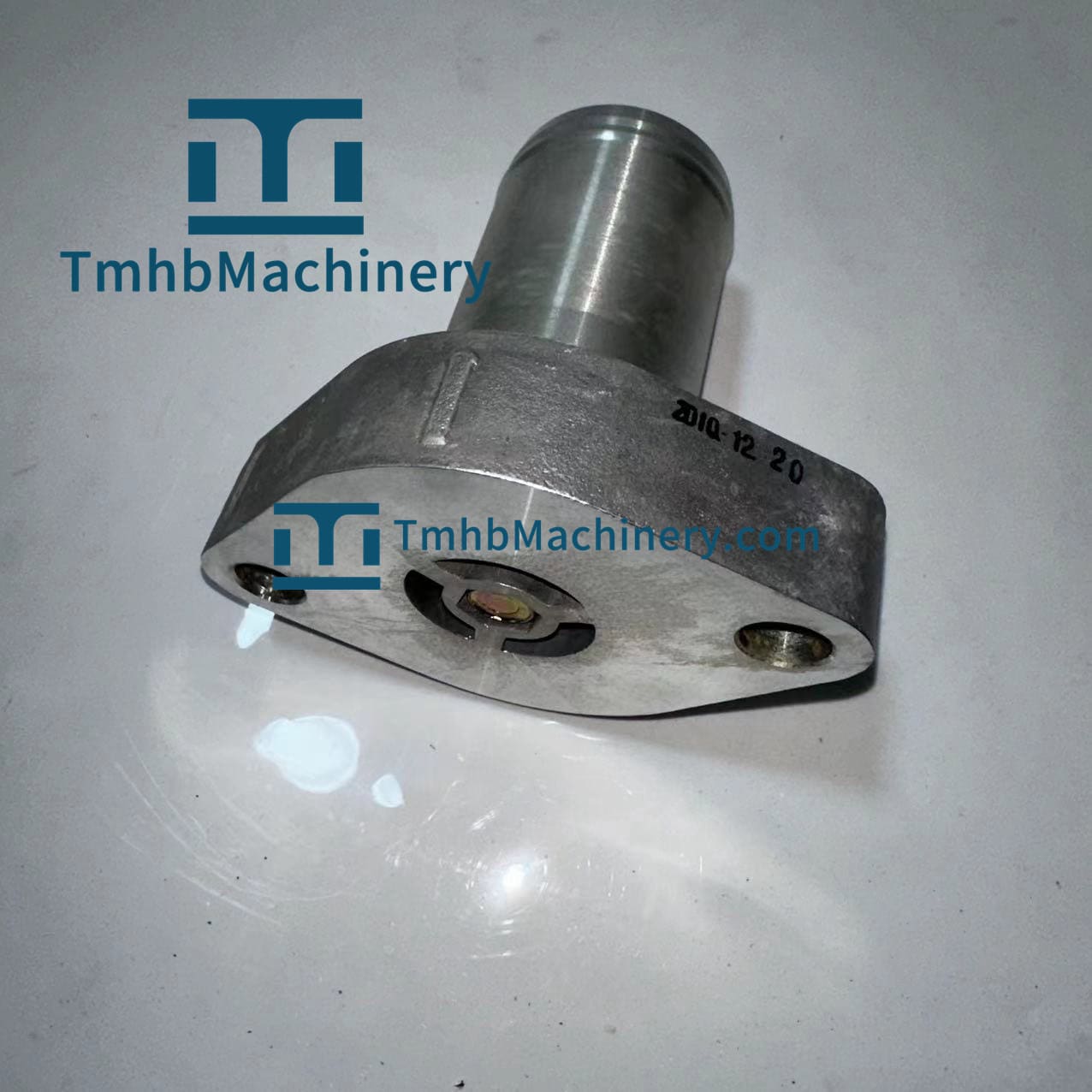

PART NUMBER : 31N5-11150
PART NAME: VALVE-CHECK RETURN
BRAND: TmhbMachinery
WEIGHT :0.3KG
SIZE: 120 x 80 x 130 (LWH)
MODEL: HW160
HW180
HW210
HW210CN
HW210A
HW210A (#10001-)
WX210E
R160W-9A
R170W-9
R180W-9A
R190W-9
R210W-9
R210W
R210W-9A
R210W9AMH
R210W(#5001-)
R210W-9MH
R210WVS
R180W-9S
R170W-9S
R210W-9S
R1700W-7A(D04FDTAA)
R1700W-7A(#1349-)
R1700W-7
R170W-7
R170W-7A

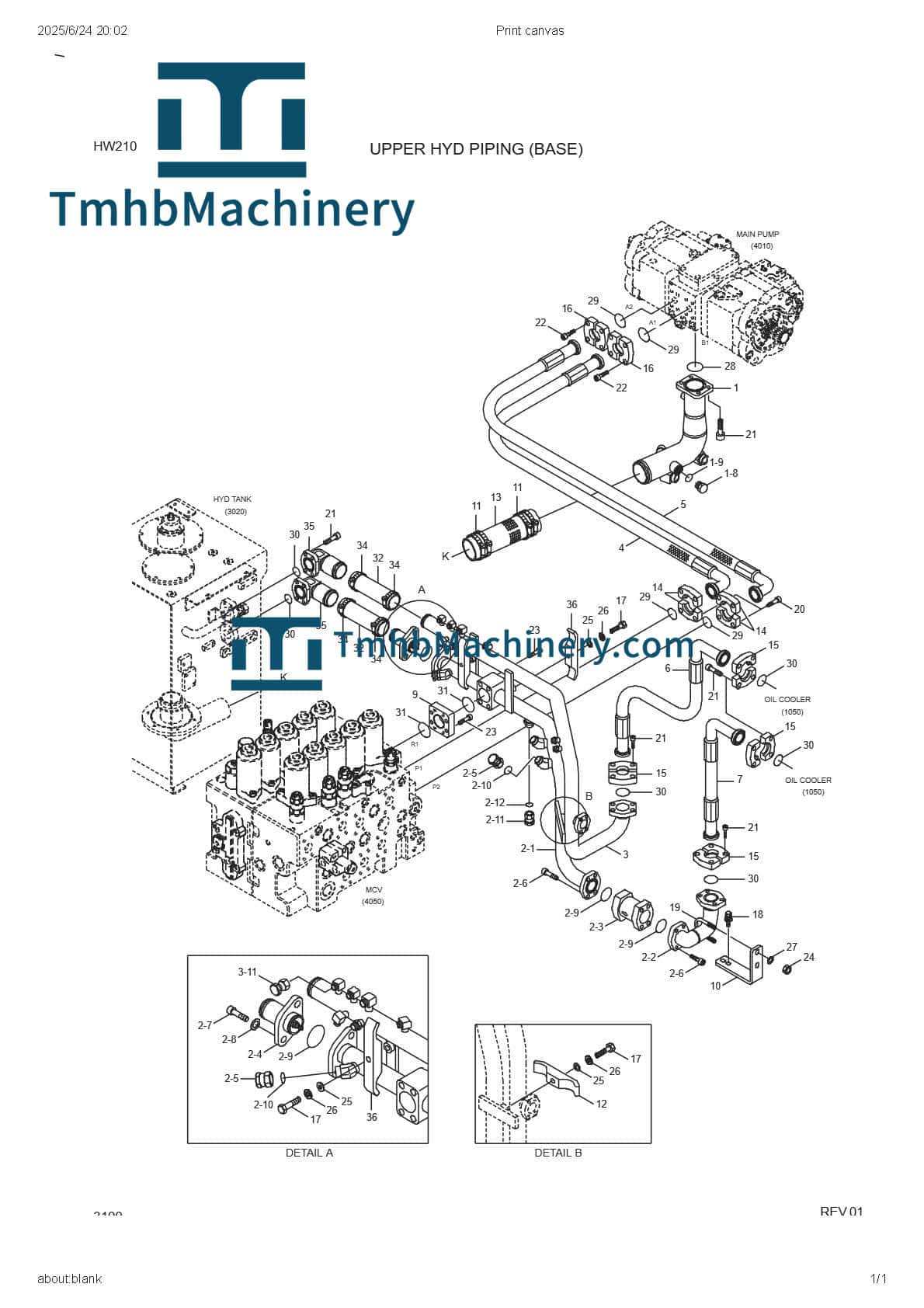

31K6-12012 Pipe Assy-Hyd
P220-110105 . Plug
S631-024004 . O-Ring
31K6-12022 Pipe Assy-Return
31K6-13332 . Pipe Assy-Hyd
31K6-13042 . Pipe Assy-Hyd
31Q7-11110 . Valve-Check Return
31N5-11150 . Valve-Check Return
X710-100106 . Cap-Orfs
S109-120306 . Bolt-Socket
S109-120456 . Bolt-Socket
S403-12200B . Washer-Plain
Y172-003004 . O-Ring
S621-021001 . O-Ring
X710-100105 . Cap-Orfs
S621-018001 . O-Ring
31K6-12052 Pipe Assy-Hyd
X710-100102 . Cap-Orfs
31K6-13780 Hose Assy-Flg
31K6-13790 Hose Assy-Higrade
31K6-13100 Hose Assy-Flg
31K6-13110 Hose Assy-Flg
31K6-14130 Hose Assy-Flg
31K6-13110 Hose Assy-Flg
31Q6-11030 Flange
31K6-11321 Bracket
11Q4-44390 Clamp
11K4-44390 Clamp
31Q6-11140 Clamp-Pipe
P760-102033 Hose-L/Pressure Rubber
P173-160104 Flange-Split
P173-240107 Flange-Split
P174-160115 Flange-Split
S017-120606 Bolt-Hex
S037-123526 Bolt-W/Washer
S070-024949 Bolt-U
S109-100306 Bolt-Socket
S109-120306 Bolt-Socket
S109-120406 Bolt-Socket
S109-120706 Bolt-Socket
S205-10100B Nut-Hex
S403-12200B Washer-Plain
S403-122006 Washer-Plain
S411-120006 Washer-Spring
S441-10000B Washer-Harden
S441-100006 Washer-Harden
S631-071001 O-Ring
XCAV-00026 O-Ring
Y470-160000 Seal-Trap
Y172-003004 O-Ring
Y470-240000 Seal-Trap
Y172-006004 O-Ring
Y470-320000 Seal-Trap
31N8-13080 Hose-Rubber
11Q4-44300 Clamp
11Q4-44370 Clamp
31Q6-11021GG Pipe Assy-Hyd
35Q6-11140 Clamp
