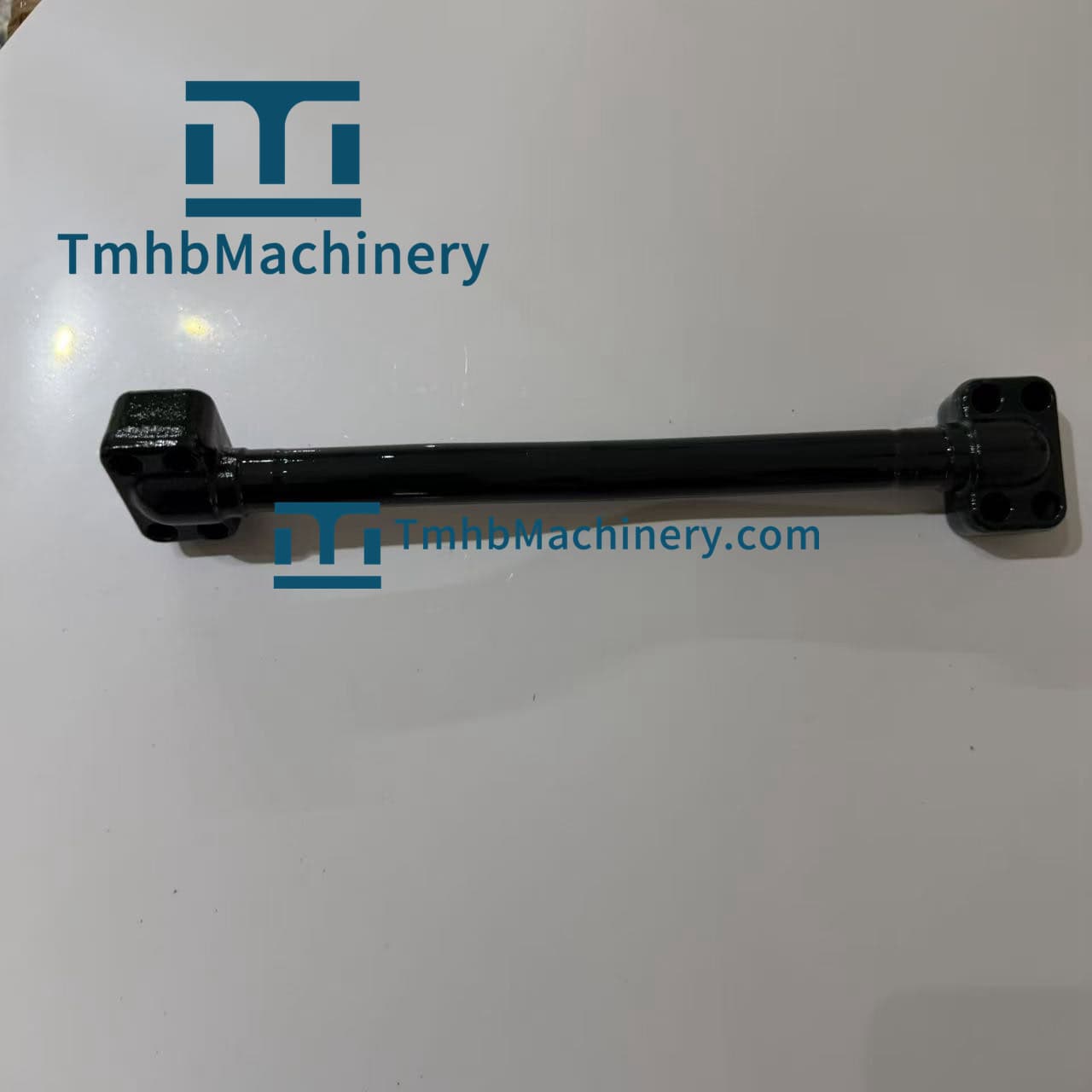

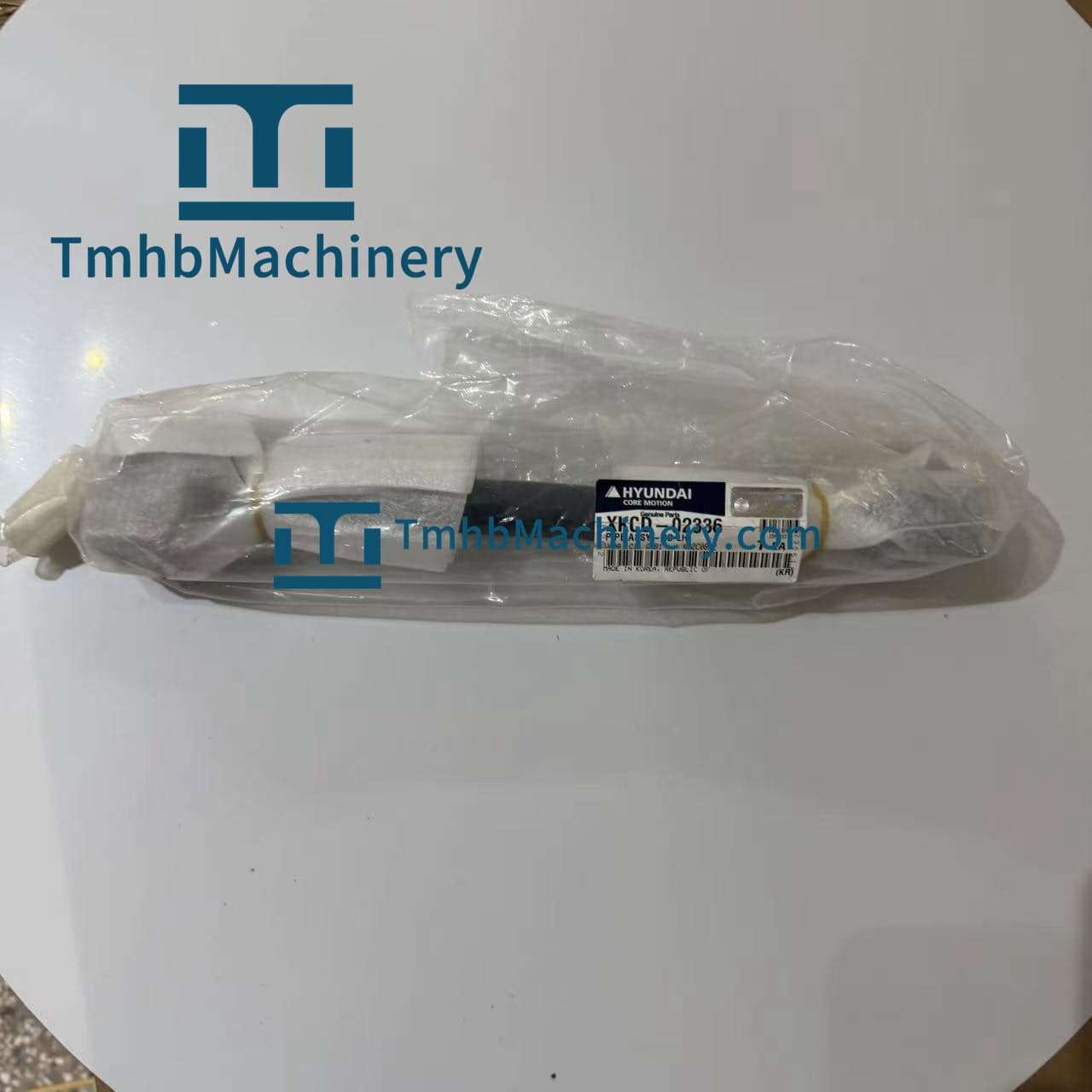

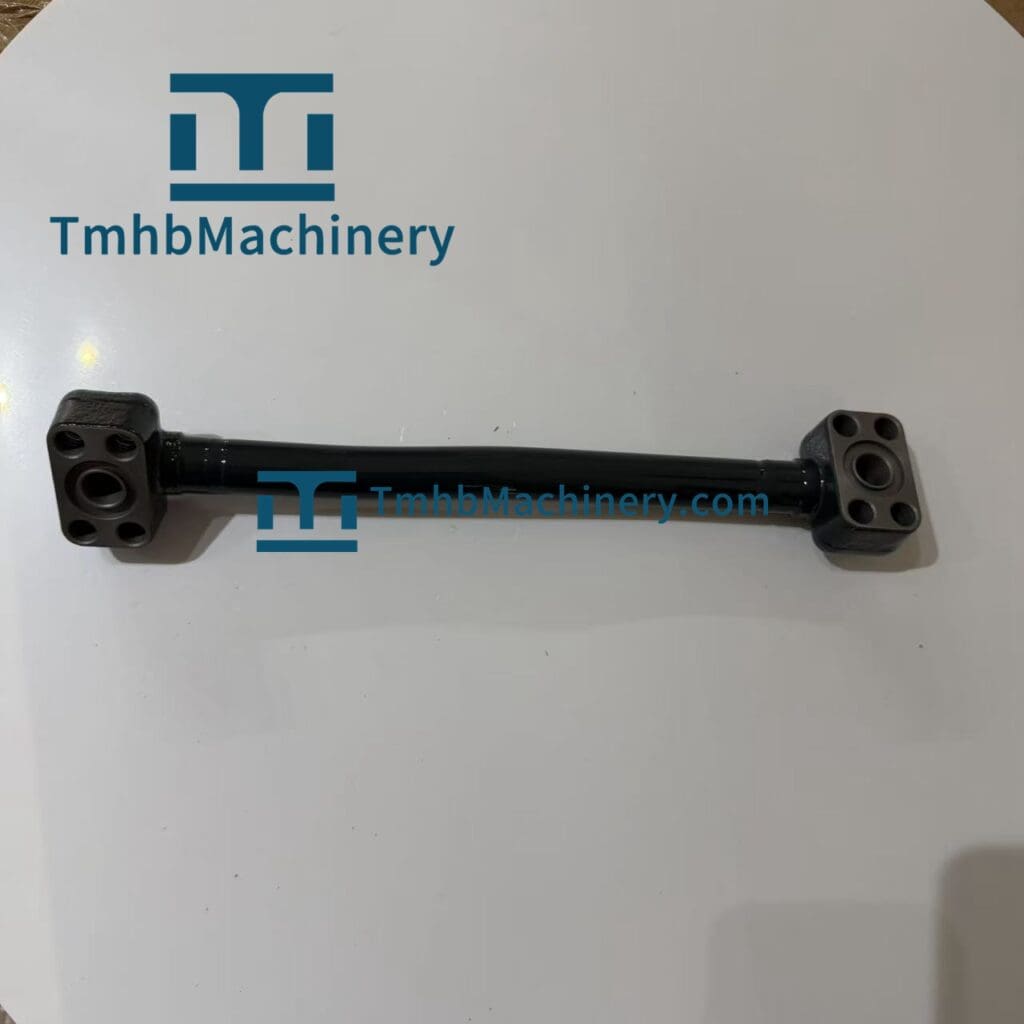

PART NUMBER : XKCD-02336
PART NAME: PIPE ASSY-RD LH
BRAND: TmhbMachinery
WEIGHT :0.947KG
SIZE: 55 x 55 x 300 (LWH)

MODEL: SEE LIST
1 R140W (-#5000,8001-)
2 R140W (#5001-8000)
3 R150WVS
4 R150WVSPRO

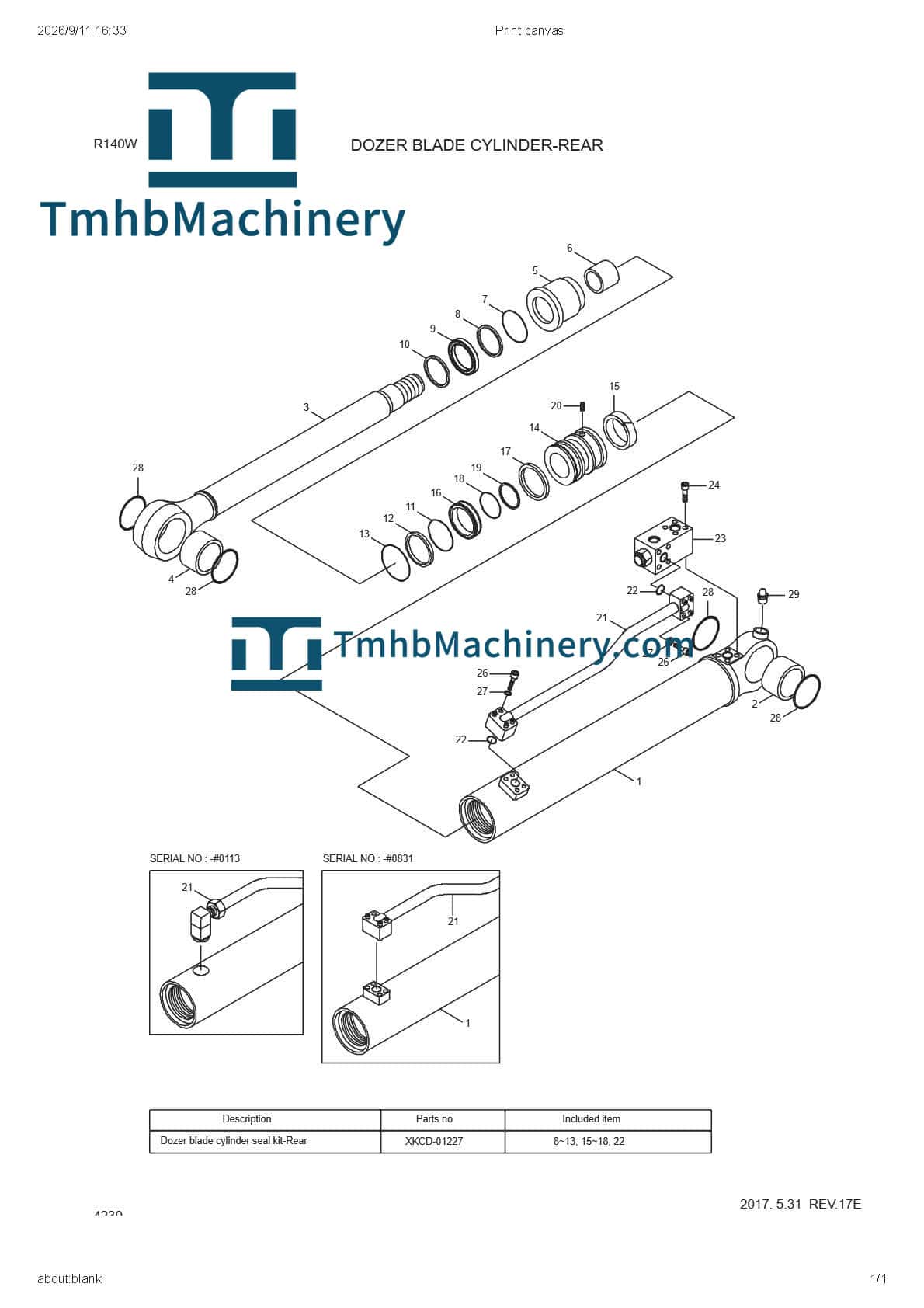

31Q4-70110 Cylinder Assy-Dozer Lh
31Q4-70111 Cylinder Assy-Dozer Lh
31Q4-70112 Cylinder Assy-Dozer Lh
31Q4-70113 Cylinder Assy-Dozer Lh
31Q4-70113G9 Cylinder Assy-Dozer Lh
31Q4-70120 Cylinder Assy-Dozer Rh
31Q4-70121 Cylinder Assy-Dozer Rh
31Q4-70122 Cylinder Assy-Dozer Rh
31Q4-70123 Cylinder Assy-Dozer Rh
31Q4-70123G9 Cylinder Assy-Dozer Rh
XKCD-01189 . Tube-Cyl
XKCD-01633 . Tube-Cyl
XKCD-02332 . Tube-Cyl
XKCD-02443 . Tube-Cyl
61Q6-05510 . Bush-Pin
XKCD-02444 . Rod-Piston
61Q6-05510 . Bush-Pin
XKCD-01192 . Cover-Rod
XKCD-01193 . Bushing-Du
XKCD-01194 . Ring-Retainer
XKCD-01195 . Ring-Buffer
XKCD-01196 . Packing-U
XKCD-01197 . Wiper-Dust
XKCD-01198 . O-Ring
XKCD-01239 . Ring-Backup
XKCD-01637 . O-Ring
XKCD-02445 . Piston-Cyl
XKCD-01202 . Ring-Wear
XKCD-01203 . Seal-Piston
XKCD-01204 . Ring-Dust
XKCD-01138 . O-Ring
XKCD-02292 . Ring-Backup
XKCD-01205 . Screw-Set
XKCD-01206 . Pipe Assy-Rd
XKCD-02447 . Pipe Assy-Rd Lh
XKCD-02336 . Pipe Assy-Rd Lh
XKCD-03609 . Pipe Assy-Rd Lh
XKCD-02446 . Pipe Assy-Rd Rh
XKCD-02335 . Pipe Assy-Rd Rh
XKCD-03611 . Pipe Assy-Rd Lh
XKCD-01207 . O-Ring
XKCD-01207 . O-Ring
31Q4-40310 . Valve-Check Db Lh
31Q4-40340 . Valve-Pilot Check Lh
31Q4-40320 . Valve-Check Db Rh
31Q4-40330 . Valve-Double P/Chk Rh
XKCD-01210 . Bolt-Socket
XKCD-01210 . Bolt-Socket
XKCD-01211 . Bolt-Socket
XKCD-01212 . Bolt-Socket
XKCD-01212 . Bolt-Socket
XKCD-00989 . Washer-Spring
XKCD-00989 . Washer-Spring
XKCD-01213 . Wiper-Dust
XKCD-01024 . Nipple-Grease
XKCD-01227 Seal Kit-Cyl
